Flash Profiler
PATA DoM

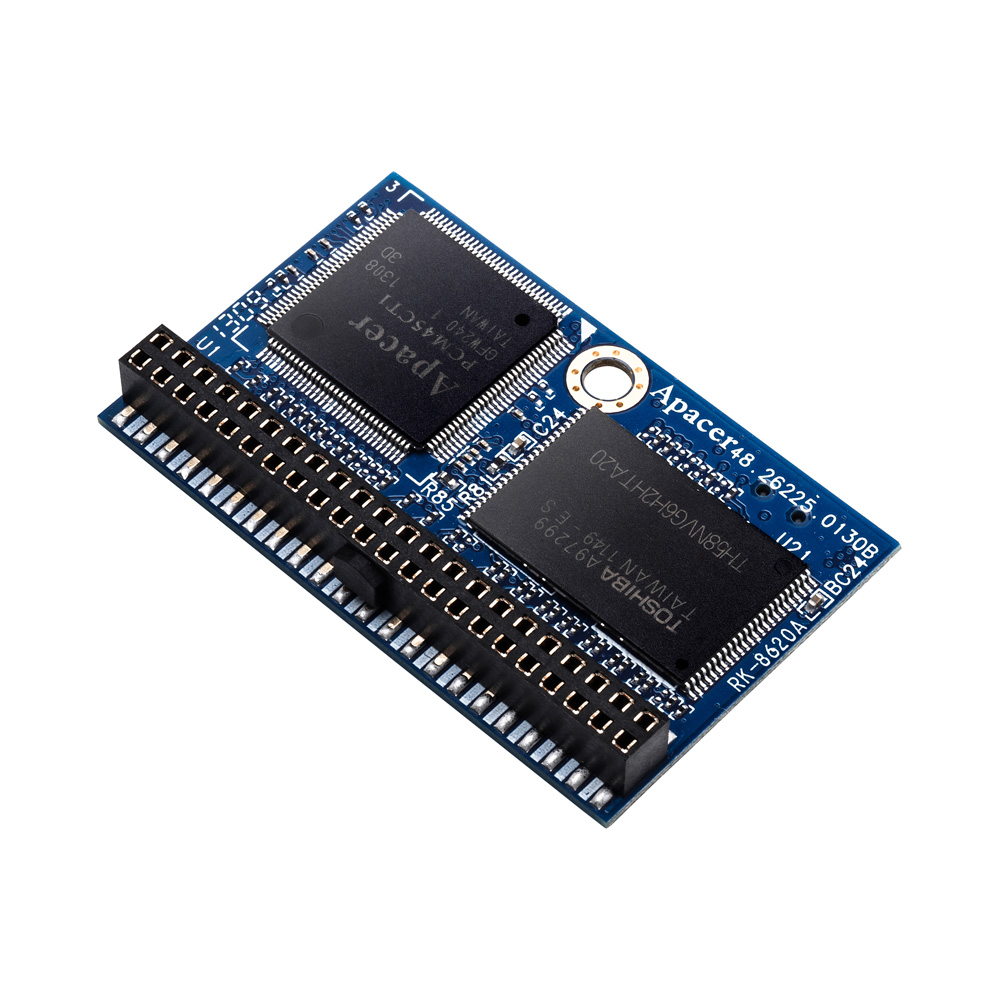

Apacer PATA DoM ADM5S

Apacer ATA Disk Module 5S(ADM) complies with 44 PIN IDE (ATA) standard interface in horizontal type or in vertical type, including 90 and 270 degree. With high capacity of flash memory supporting, and is suitable for data storage media and code storage device for embedded system, mobile computing devices or other electronic equipments. 100% Compatible with the Standard IDE ATA interface, Apacer ATA Disk Module 5S(ADM) works exactly like a standard hard drive but without any moving part, strongly increasing reliability and improving data access speed performance, without any noise.

Model No.
ADM5S
Interface
PATA
Capacity
128MB - 64GB
Flash Type
SLC
Endurance
60.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 75MB/s | SW: 65MB/s
DRAM
No

Cactus PATA DoM Series 303

The Cactus Technologies 303 Series Industrial Grade IDE DOM (Disk-On-Module), available in capacities up to 8 Gbytes, is a solid-state flash memory product available in 40 or 44-pin vertical and horizontal versions that attach directly to the IDE header of a system board. It is intended for OEM applications needing a high endurance part with high performance or requiring the optional full extended temperature range of -45C to +90C.
The 303 Series Industrial Grade IDE DOM is SLC NAND based and comes with full BOM Control, Long Life Cycles and is built with Stringent Quality Processes. Cactus Technologies incorporates Industrial Grade ECC, Wear Leveling, Write Abort Protection Circuitry and Defect Management into the product, making it the most reliable IDE DOM available.

Model No.
PATA DoM Series 303
Interface
PATA
Capacity
128MB - 8GB
Flash Type
SLC
Endurance
60.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-45°C +90°C
Performance
SR: 35MB/s | SW: 20MB/s
DRAM
No
