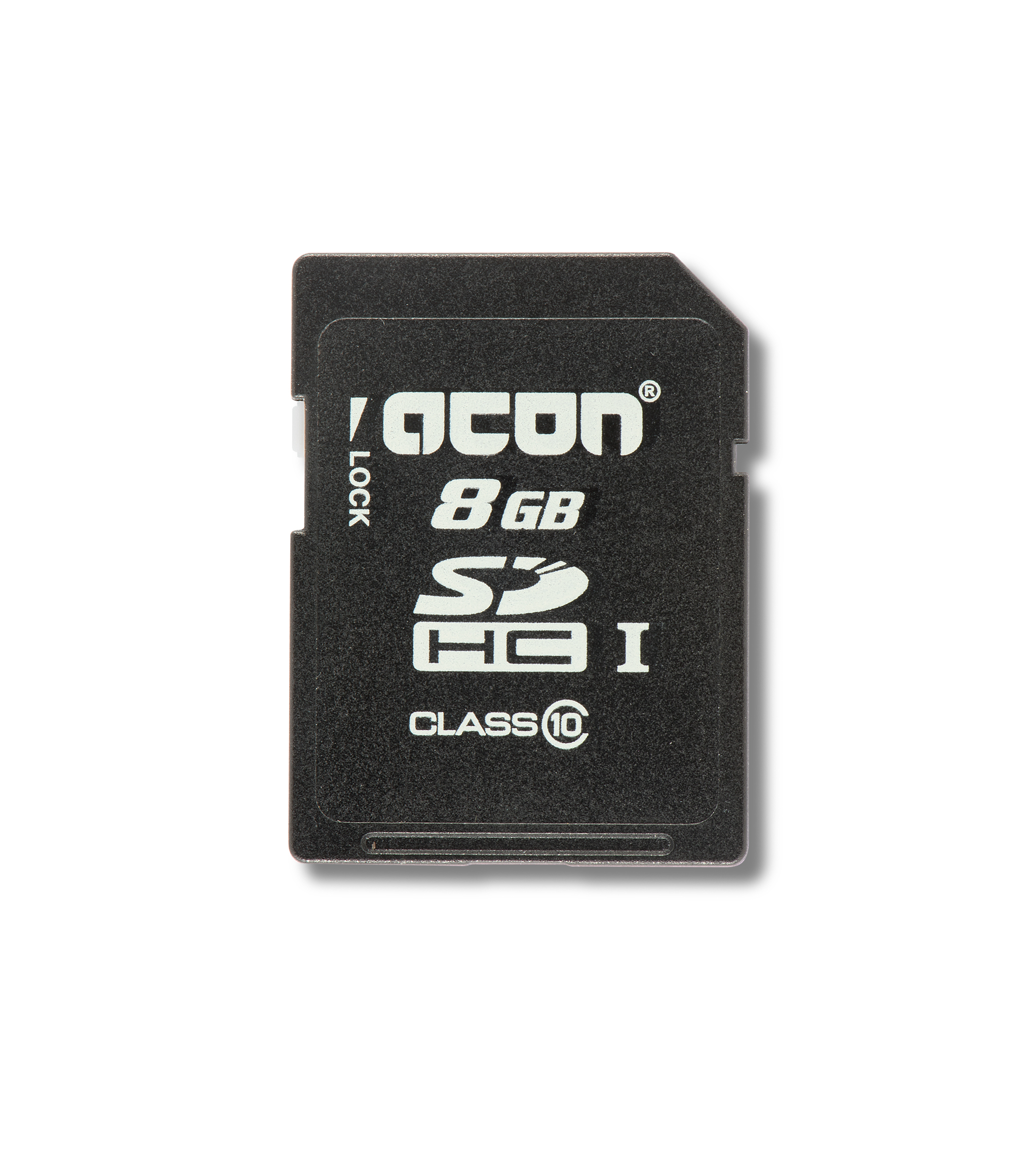

acon SD Card L/LX30

The Secure Digital (SD) card version 3.0 is fully compliant with the standards released by the SD Card Association. The Command List supports [Part 1 Physical Layer Specification Ver3.01 Final] definitions. Card capacities of non-secure area and secure area support [Part 3 Security Specification Ver3.0 Final] specifications.
The SD 3.0 card comes with 9-pin interface, designed to operate at a maximum operating frequency of 100MHz. It can alternate communication protocol between the SD mode and SPI mode. It performs data error detection and correction with very low power consumption. Its capacity could reach 64GB with FAT32 SDXC.
acon’s Secure Digital 3.0 cards are one of the most popular cards today due to its high performance, good reliability and wide compatibility. Not to mention that it’s well adapted for hand‐held applications in semi‐industrial/medical markets already. Moreover, with customised firmware technique, acon‘s Industrial 3.0 can be configured with pSLC SD Mode and presents outstanding performance along with better P/E cycles.

Model No.
L/LX30
Interface
SD 3.0
Capacity
2GB - 64GB
Flash Type
pSLC
Endurance
20.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
-40C bis +85C
Performance
SR: 95MB/s | SW: 90MB/s
DRAM
No

Cactus SD Card Series 245

The Cactus Technologies 245 Series OEM Grade SD cards are highly reliable, cost effective flash storage devices, based on Pseudo-SLC (pSLC) NAND. They are intended for applications which demand extremely high performance and medium endurance in a rugged embedded foot print guaranteed to MIL-810 Standard shock and vibration.

OEM Grade pSLC SD Cards have >6 times more endurance cycles than Commercial Grade products based on MLC NAND. Pseudo-SLC products should be used in applications which require better endurance, error rates and data retention than the Commercial Grade MLC SD Cards. The Pseudo-SLC NAND White Paper gives a detailed overview of this technology.

For OEMs requiring the highest level of reliability and endurance, Cactus offers Industrial Grade products to meet the most demanding applications in the harshest environments.

Model No.
KS4GR-245
Interface
SD 3.0
Capacity
4GB - 64GB
Flash Type
pSLC
Endurance
20.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
-40C bis +85C
Performance
SR: 80MB/s | SW: 45MB/s
DRAM
No
