Flash Profiler
M.2 2280

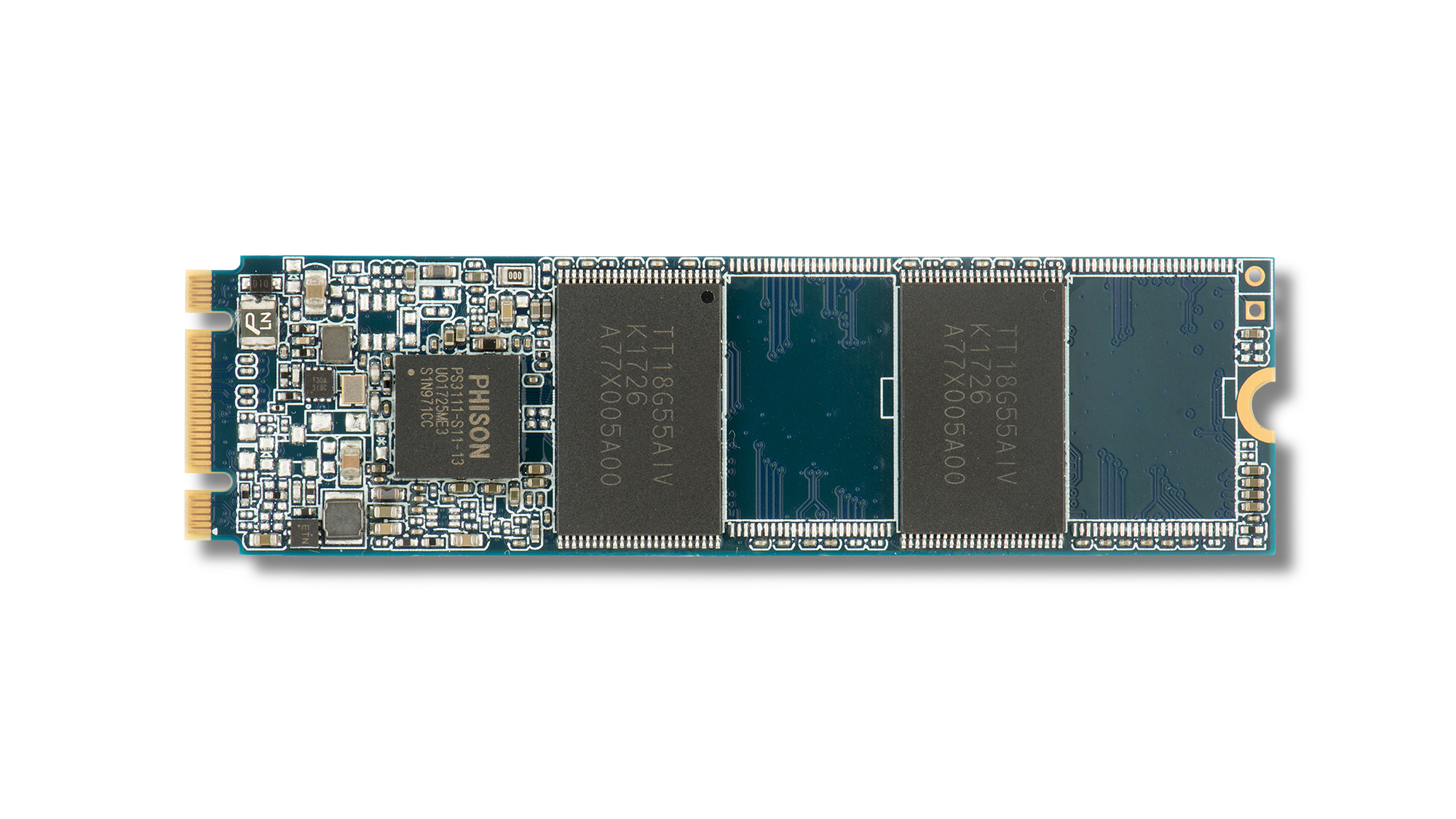

acon M.2 2280 SATA III SSD T/TX410

acon’s M.2 2280 delivers all the advantages of flash disk technology with the Serial ATA I/II/III Interface and is fully compliant with the standard Next Generation Form Factor (NGFF) called M.2 Card Format, which is generated by Intel. The M.2 2280 is designed to operate at a maximum operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to 1024GB. Moreover, it can reach up to 550MB/s read as well as 500MB/s write high performance based on Toggle 2.0 TLC flash (with 32MB SDR enabled and measured by CrystalDiskMark v5.0). The power consumption of the M.2 2280 is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model No.
T/TX410
Interface
SATA III 6.0 Gb/s
Capacity
32GB - 1TB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 550MB/s | SW: 500MB/s
DRAM
No

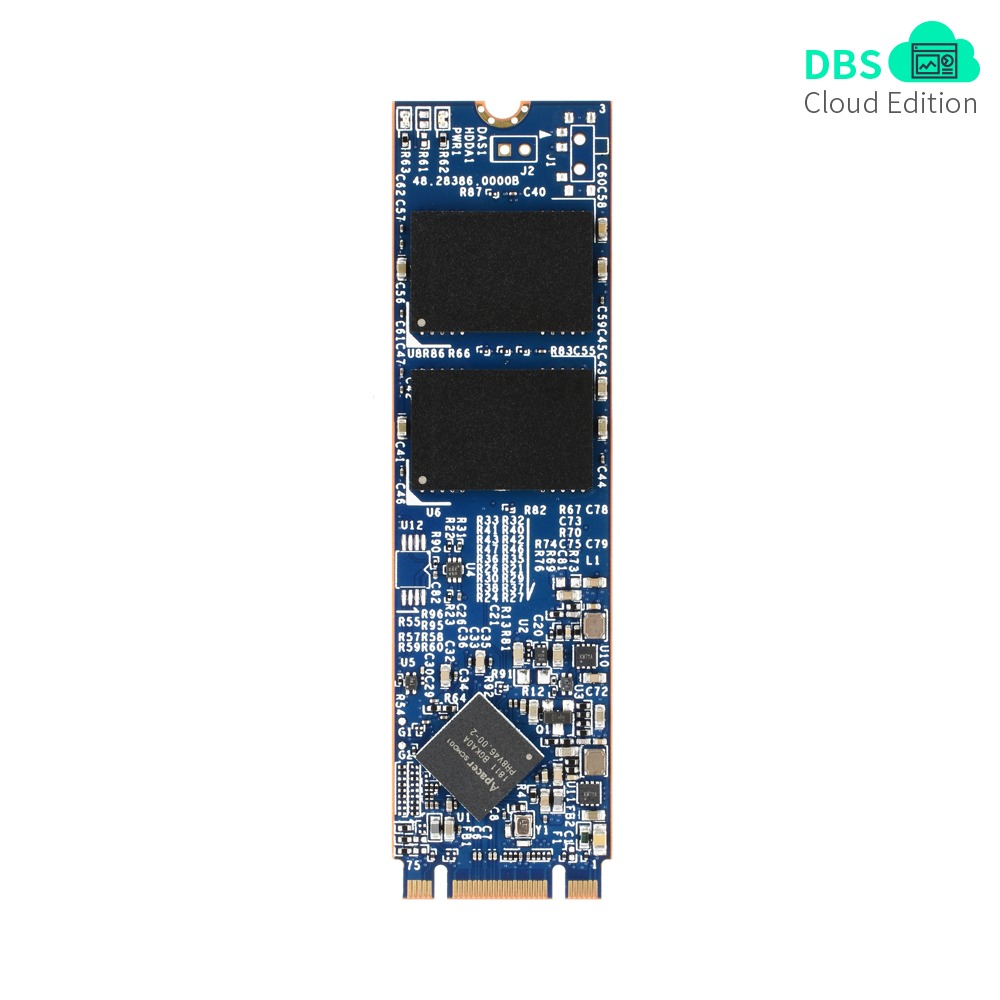

Apacer M.2 2280 SATA III SSD SV25C-M280

Apacer’s SV25C-M280 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6.0 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

SV25C-M280 utilizes 3D NAND for higher capacity up to 960GB and provides more power efficiency than 2D NAND. Appearing in M.2 2280 mechanical dimensions, SV25C-M280 is believed to be the leading add-in storage solution for future host computing systems.

Regarding reliability, SV25C-M280 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, Wear Leveling, flash block management, S.M.A.R.T., TRIM and DataDefender™.

Model No.
SV25C-M280
Interface
SATA III 6.0 Gb/s
Capacity
30GB - 960GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C - +70°C
Extended Temperature
-40°C - +85°C
Performance
SR: 560MB/s | SW: 520MB/s
DRAM
No

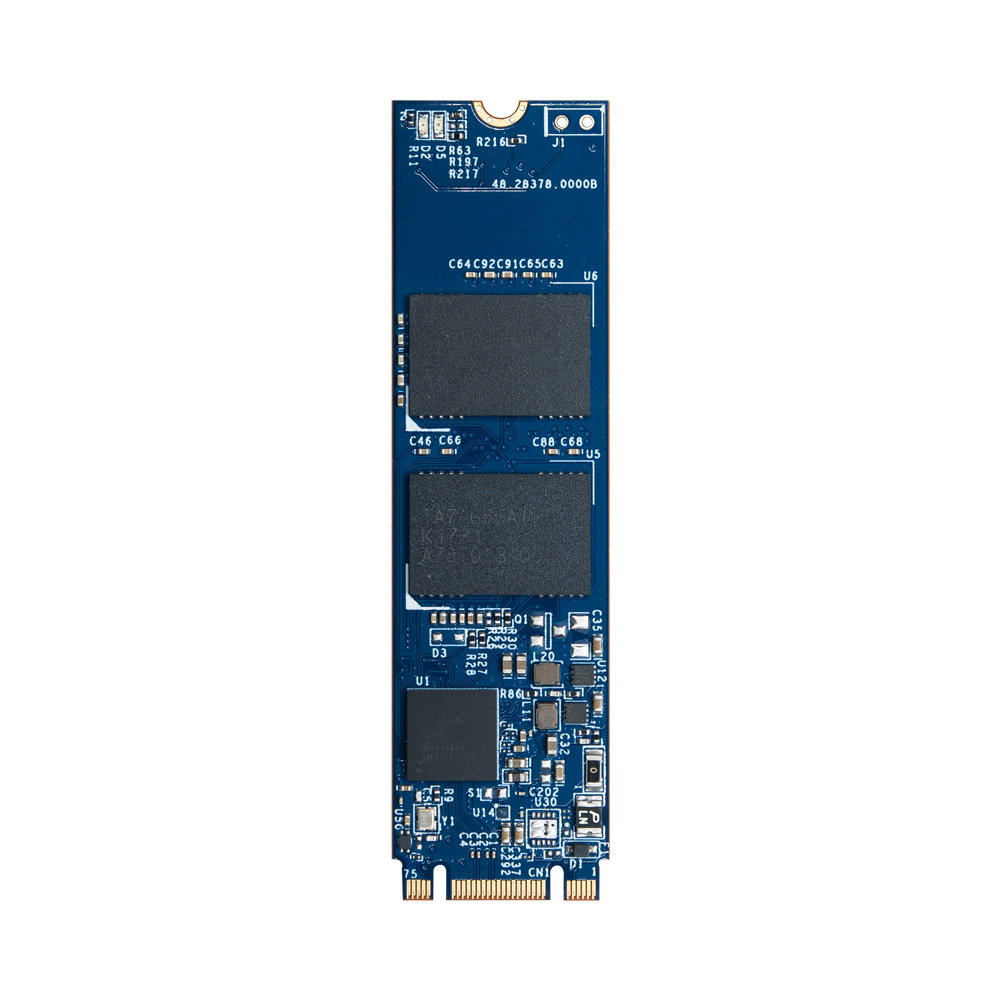

Apacer M.2 2280 SATA III SSD ST170-M280

Apacer’s ST170-M280 (M.2 2280) utilizes 3D NAND for higher capacity up to 960GB and provides higher power efficiency than 2D NAND, with the aim of becoming more suitable for mobile and compact computers with standard width at only 22.00 mm. ST170-M280 appears in M.2 2280 mechanical dimensions and is believed to be the leading add-in storage solution for future host computing systems. Regarding reliability, ST170-M280 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip.

Model No.
ST170-M280
Interface
SATA III 6.0 Gb/s
Capacity
30GB - 960GB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C - +70°C
Extended Temperature
-40°C - +85°C
Performance
SR: 560MB/s | SW: 515MB/s
DRAM
No

acon M.2 2280 SATA III SSD T/TX420

acon’s M.2 2280 SATA Solid State Disk (SSD) delivers all the advantages of flash disk technology with the Serial ATA I/II/III interface, including being fully compliant with the standard Next Generation Form Factor (NGFF) M.2 2280 form factor, providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks. The device is designed based on the M.2 2280 standard. Its capacity could provide, 240GB, 480GB, 960GB, 1920GB. Moreover, it can reach up to 550MB/s read as well as 520MB/s write high performance based on Kioxia BiCS3 TLC NAND flash.

Model No.
T/TX420
Interface
SATA III 6.0 Gb/S
Capacity
240GB - 2TB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 550MB/s | SW: 520MB/s
DRAM
Yes
