Flash Profiler

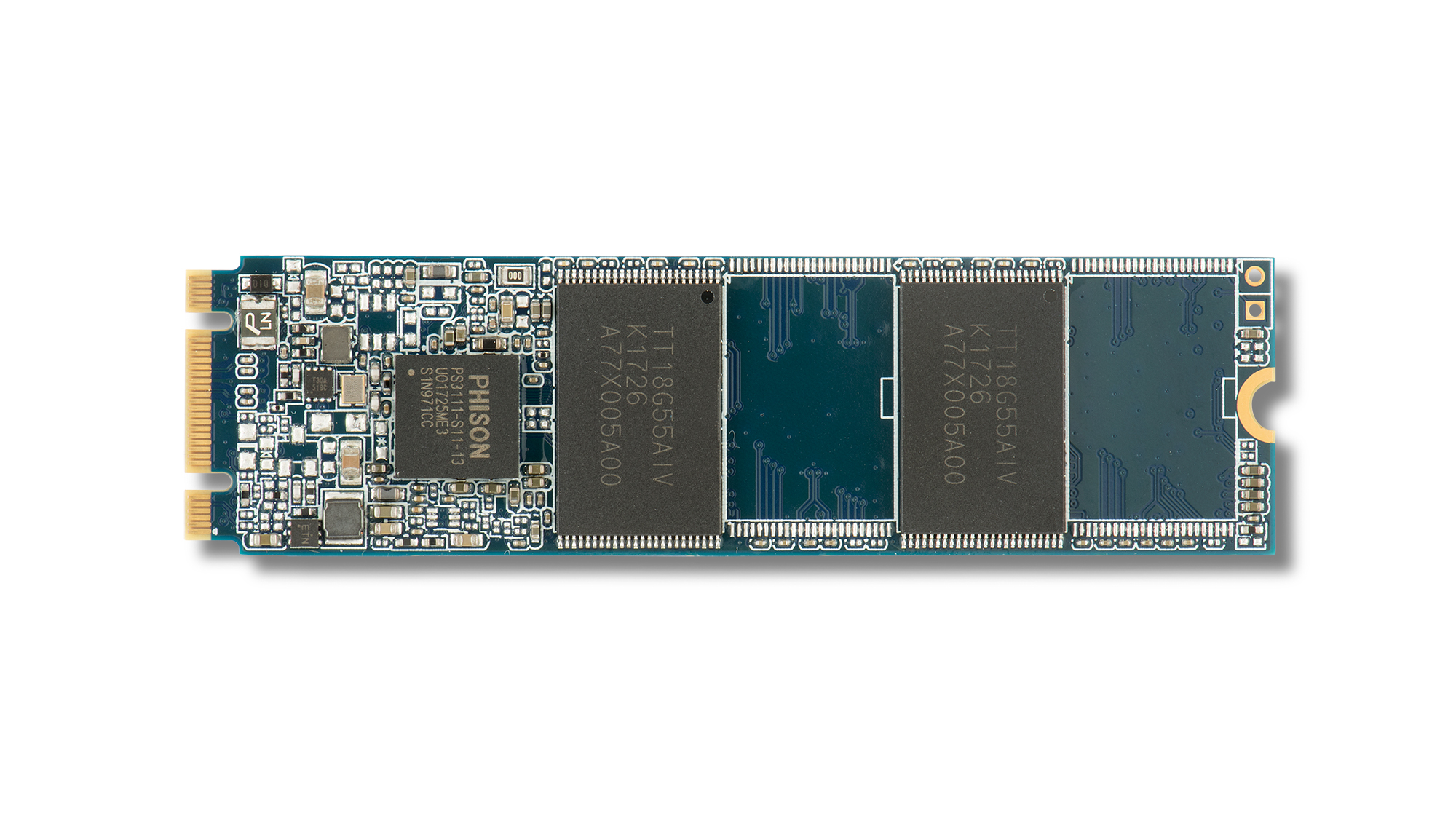

acon M.2 2280 PCIe SSD T/TX220

acon’s M.2 2280 delivers all the advantages of flash disk technology with PCIe Gen3 x4
interface and is fully compliant with the standard Next Generation Form Factor (NGFF) called
M.2 Card Format. acon’s M.2 2280 offers a wide range capacity up to 1920GB and its
performance can reach up to 3000 MB/s (for read) and 1000 MB/s (for write) based on
Kioxia1 BiCS3 TLC NAND flash with the choice of 512MB/1GB/2GB DDR4. Moreover, the power
consumption of acon’s M.2 2280 is much lower than traditional hard drives, making it the best
embedded solution for new platforms.

Model No.
T/TX220
Interface
PCIe Gen. 3x4
Capacity
240GB - 2TB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 3.000MB/s | SW: 1.000MB/s
DRAM
Yes

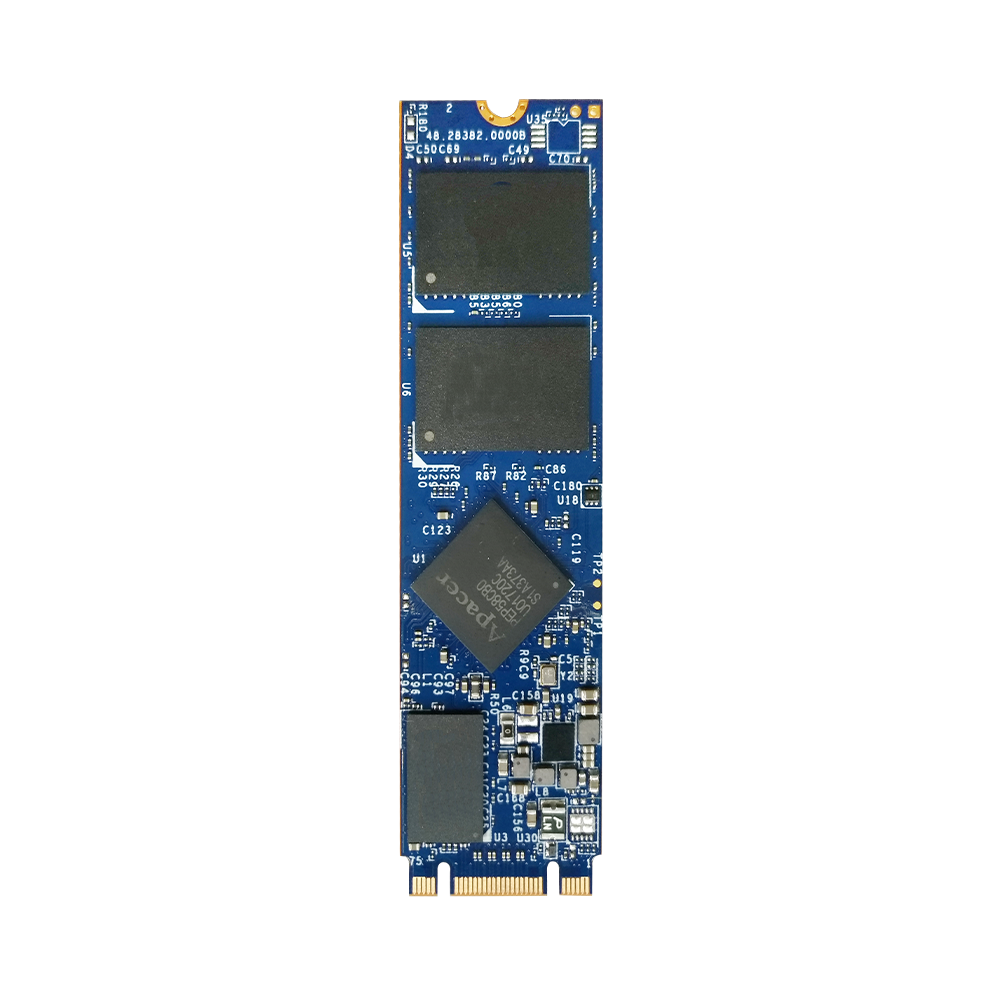

Apacer M.2 2280 PCIe SSD PV310-M280

Apacer PV310-M280 is the fastest SSD designed as M.2 2280 mechanical dimensions, providing full compliance with PCIe Gen3 x4 interface and NVMe 1.3 specifications.
Built with a powerful PCIe controller, PV310-M280 delivers outstanding performance in data transfer, reaching up to 345,000/172,000 and 2,660/2,260 MB/s in IOPS and sequential read/write.
In terms of security, Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal ensure data security and provide users with a peace of mind knowing their data is safeguarded against unauthorized use at all times. Furthermore, with End-to-End Data Protection, data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers.

Model No.
PV310-M280
Interface
PCIe Gen. 3x4
Capacity
240GB - 1TB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C +85°C
Performance
SR: 2.660MB/s | SW: 2.260MB/s
DRAM
Yes

Cactus M.2 2280 PCIe SSD Series 270

The Cactus Technologies 270P Series Commercial Grade M.2 (also known as NGFF – Next Generation Form Factor) in the 2280 form factor (22mm x 80mm) is available in capacities from 128GB to 1TB. It is a solid-state flash memory product with native NVMe interface in a PCI Express Gen3 x4 configuration that is compliant with PCI Express base specifications, ver.3.1 and NVMExpress specifications, ver.1.3.Based on the highest quality and reliability 3D TLC NAND, it is intended for OEM and Industrial systems requiring high reliability over many years of usage in the field. All parts are conformal coated to avoid contamination from the environment and have a heat spreader for thermal management. It uses LDPC error correction with an End-to-End datapath protection. It supports NVMe defined SMART attributes and 16 I/O queues w/ max. queue depth of 32 each.

Model No.
KD512GF-270PM7
Interface
PCIe Gen. 3x4
Capacity
128GB - 1TB
Flash Type
3D TLC
Endurance
3.000 P/E Cycles

Standard Temperature
0°C +70°C
Extended Temperature
--
Performance
SR: 1.600MB/s | SW: 1.400MB/s
DRAM
Yes
